Open-source information gives clues on what China’s massive dam project might look like

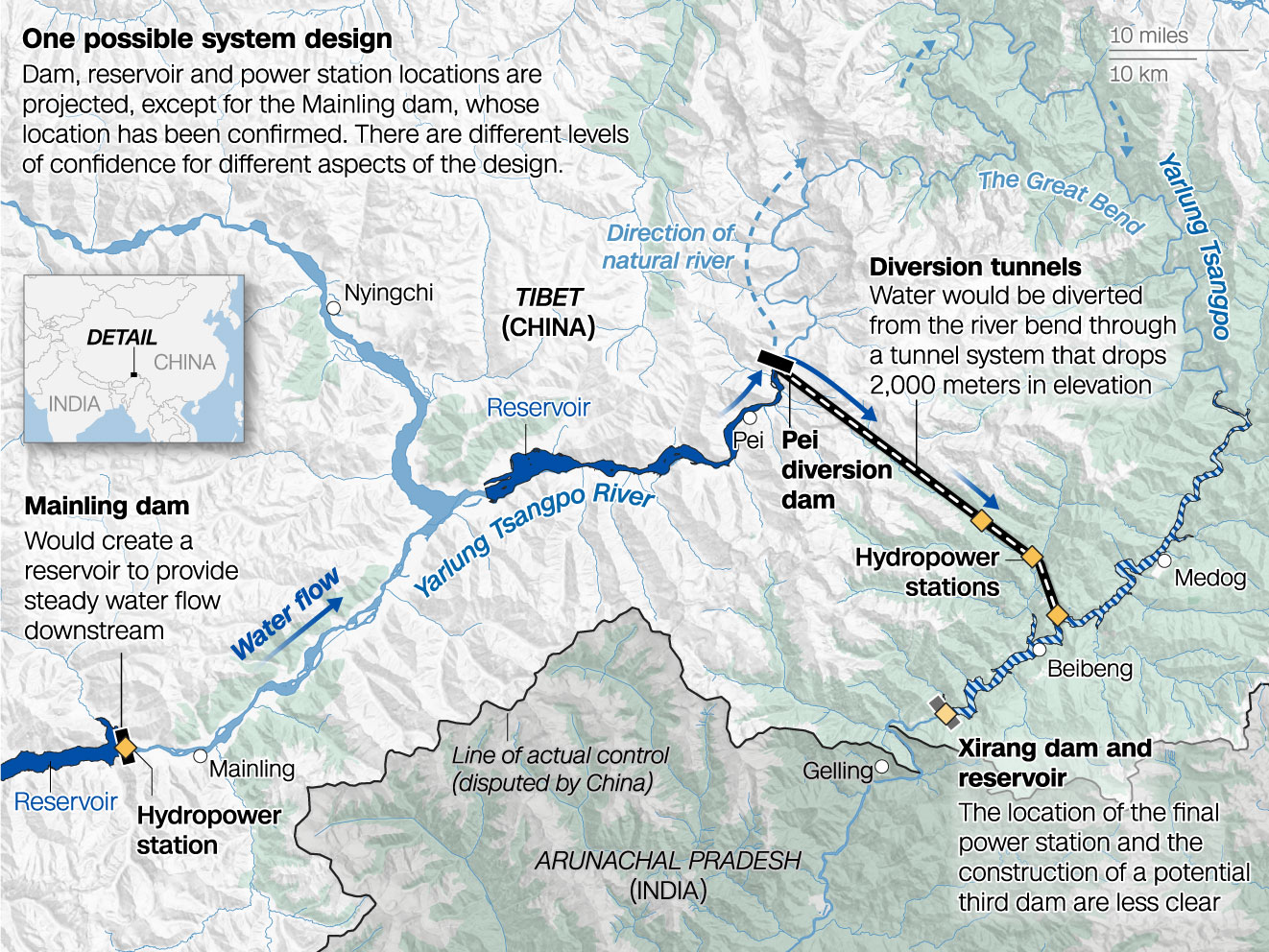

CNN and experts from the Stimson Center think tank created this simulation of one possible design using open-source information and technical assessments. The project is expected to include five cascade hydropower stations and a tunnel system that diverts a portion of the river, enabling it to lose some 2,000 meters of elevation over 50 kilometers and generate power via this swift elevation drop. See more on our methodology for creating this design at the end of the story.Swipe to view full map ►
